MSI MAG FORGE M100R Gaming Case Review 2026 - UK Build Tested

The budget PC case market sits in a weird spot. You've got a handful of genuinely decent options, a pile of rebranded sheet metal with questionable airflow, and a few that look the part in product photos but fall apart the moment you actually try to build in them. I've put together systems in everything from sub-£40 no-name chassis to £200 premium towers, and the gap between a well-designed budget case and a poorly-designed one is enormous. The MSI MAG FORGE M100R lands in that competitive sub-£50 bracket where every millimetre of GPU clearance and every cable routing channel matters, because there's no premium padding to hide bad decisions. If you're exploring options, check out our guide to best PC cases under £100 for more alternatives in this price range. So I pulled one out of the box, spent two weeks building a complete system inside it, and here's what I found.

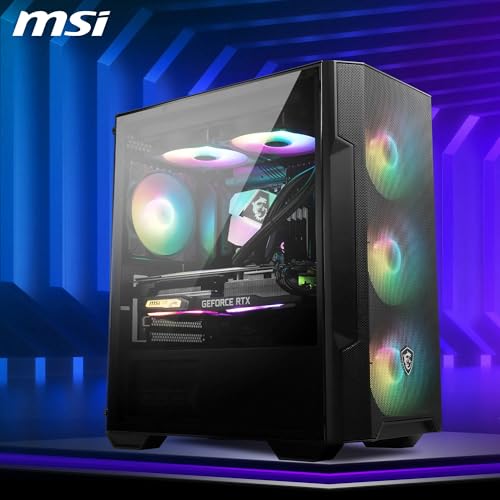

The MSI MAG FORGE M100R Gaming Case Review 2026 is a micro-ATX mid-tower aimed squarely at first-time builders and budget system integrators who want a tidy, RGB-lit chassis without spending serious money. MSI has been pushing the FORGE line for a few years now, and the M100R is their compact entry point. On paper the specs look reasonable: mesh front panel, tempered glass side, three pre-installed fans. But specs on paper and specs in practice are two different things, and at this price tier the devil is absolutely in the details.

I tested this with a mid-range build: a Ryzen 5 7600 on a B650M board, a 240mm AIO, an RTX 4070, and a modular 650W PSU. That's a realistic load for the kind of system someone buying this case would actually build. Two weeks of gaming, stress testing, and general use later, I've got a clear picture of where the M100R earns its keep and where it cuts corners.

Fan support is where the M100R tries to punch above its weight. You get three 120mm ARGB fans included in the box, which is genuinely good value at this price. The front panel supports up to three 120mm fans or a 240/360mm radiator. The top panel takes two 120mm fans or a 240mm radiator. The rear has a single 120mm exhaust position. Total potential fan count sits at six 120mm units, which is more than adequate for a compact build. The included fans are basic but functional, and I'll get into their actual performance in the airflow section.

Storage support is limited, as you'd expect from a compact mATX chassis. You get two 3.5-inch drive bays and two 2.5-inch mounting positions. For a budget build that's probably fine, but if you're planning a NAS-adjacent setup with multiple spinning drives, look elsewhere. The PSU shroud is present, which helps keep the bottom of the case tidy. Weight comes in around 4.5kg without components, which feels about right for the steel gauge used.

The tempered glass left panel is the visual centrepiece, and it's a proper 4mm panel rather than the thin acrylic you sometimes find at this price. It's held in by two thumbscrews at the rear, which is fine. The right panel is solid steel and also thumbscrew-mounted. Both panels have reasonable alignment out of the box, though the right panel on my review unit had a very slight gap at the top front corner. Not a structural issue, just a minor fit-and-finish thing that you'd expect at this price.

The footprint is compact enough that it'll sit comfortably on most standard desks without hanging over the edge or blocking monitor stands. The rubber feet are decent quality and provide enough grip that the case doesn't slide around when you're plugging things in. One thing I noticed: the front panel mesh design means there's no solid front face to grab when moving the case around. You end up gripping the side panels, which is fine, but worth knowing if you're planning to move it frequently. The top panel has a magnetic dust filter, which is a genuinely nice touch at this price point.

The I/O cutout at the rear is a standard ATX I/O shield size, which means it accommodates the full-width rear I/O panels you find on most modern mATX boards. The standoffs are pre-installed for mATX, which is helpful. If you're mounting an mITX board, you'll need to remove a couple of the pre-installed standoffs and reposition them, which takes about two minutes. The standoffs themselves are brass, not plastic, which is the right call for longevity.

One thing to flag: the CPU power cable routing hole is positioned reasonably well, but depending on your board's 8-pin EPS connector location, you might find the cable run a bit tight. On the B650M I used, the EPS connector sits near the top-left of the board, and routing the cable through the top-right grommet and back down worked fine. But if your board has the EPS connector in an unusual position, check the routing options before committing. The grommets are rubber and a decent size, so cable routing is manageable even if it's not the most spacious rear chamber in the world.

If you're planning to run a front-mounted radiator, that 320mm figure shrinks. A 240mm radiator mounted at the front will eat into GPU clearance depending on the radiator thickness and fan depth. With a 27mm thick radiator and 25mm fans, you're looking at roughly 52mm of combined depth, which pushes the effective GPU clearance down to around 270mm. That's still fine for most mid-range cards, but it rules out longer high-end GPUs entirely. Worth planning around before you buy.

There's no vertical GPU mount option on the M100R, which isn't surprising at this price. If showing off your GPU through the tempered glass is important to you, the standard horizontal mount is your only option. The PCIe slot covers are tool-free on the expansion slots, which is a nice touch. They're the snap-out type rather than screwed, and they don't rattle once a card is installed. GPU sag wasn't an issue with the 4070 I tested, though a heavier triple-fan card might benefit from a support bracket.

For AIO liquid cooling, the front panel is the primary mounting location and supports 240mm and 360mm radiators. The top panel supports 240mm radiators. I ran a 240mm AIO mounted at the front during my two-week test, and it fitted without issue. Radiator thickness matters here: a slim 27mm radiator with 25mm fans gives you that 52mm combined depth I mentioned in the GPU section. A thicker 30mm radiator with 25mm fans pushes to 55mm, which is still workable but tighter. High-flow radiators at 38mm or more are going to cause clearance headaches.

Top-mounted AIO installation is possible for 240mm units, but RAM clearance is something to check. Tall RAM with heatspreaders over 40mm can interfere with top-mounted radiator fans depending on your board layout. With standard-height DDR5 at around 32mm, I had no issues. But if you're running something like G.Skill Trident Z5 with its tall heatspreader, measure carefully before committing to a top-mounted radiator. The rear 120mm position is fine for a single-fan exhaust, and the included rear fan handles that job adequately.

The 2.5-inch positions are on the rear of the main tray and on the PSU shroud top surface. The tray-mounted position uses screws rather than tool-free mounting, which is a minor annoyance but not a dealbreaker. The PSU shroud position is more accessible and also screw-mounted. For an NVMe-primary build, the lack of dedicated SSD trays isn't a problem since your M.2 drives live on the motherboard anyway. But if you're running multiple 2.5-inch SSDs, two positions might feel limiting.

What's missing here is any kind of hidden drive bay behind the motherboard tray. Some budget cases manage to squeeze in a hidden 2.5-inch mount back there, and it's a useful spot for a boot drive or secondary SSD. The M100R doesn't have this. The rear chamber is tight enough that adding one would probably compromise cable management space, so it's an understandable omission, but worth noting if storage expansion is on your roadmap. For a typical gaming build with one NVMe and one 2.5-inch SSD, you'll be fine.

There are four cable routing holes in the main tray, all with rubber grommets. The placement is sensible: one near the top-right for the CPU power cable, one mid-right for the 24-pin, one lower-right for SATA and fan cables, and one near the PSU shroud for the GPU power cables. Velcro straps are included at three points on the rear tray, which is genuinely appreciated at this price. Some budget cases skip the Velcro entirely and leave you with cable ties, which are fine but less flexible for future upgrades.

The PSU shroud does a solid job of hiding the bottom of the build. It's a full-length shroud that covers the PSU and the drive cage, with a cutout at the front for airflow to the PSU fan. The gap between the shroud and the front panel is large enough to route cables through without forcing them. One frustration: the shroud is fixed, not removable, which makes accessing the drive cage a bit fiddly once everything is installed. Not a major issue, but if you're the type who swaps drives regularly, it adds a step.

During my two-week test with the Ryzen 5 7600 and RTX 4070, I ran a positive pressure configuration: three fans at the front as intake, one at the rear as exhaust. Under a combined CPU and GPU stress test (Cinebench R23 looping alongside FurMark), the CPU package temperature stabilised at around 72 degrees Celsius with the 240mm AIO, and the GPU hit a peak of 78 degrees Celsius. Those are reasonable numbers for a compact mATX build. Switching to a balanced configuration with two front intake and one rear exhaust dropped GPU temps by about 2 degrees but raised CPU temps slightly, which is expected.

The dust filtration story is mixed. The magnetic top filter is excellent, easy to remove and clean. The front mesh panel itself acts as a pre-filter, but there's no dedicated removable filter behind it, which means dust accumulates on the mesh and requires removing the front panel to clean properly. The front panel is held on by friction clips and comes off without tools, so it's not a huge deal, but it's less convenient than a slide-out bottom filter or a magnetic front filter. The PSU intake at the bottom has no filter at all, which is a genuine omission. Put this case on a hard floor and your PSU will be pulling in whatever's down there.

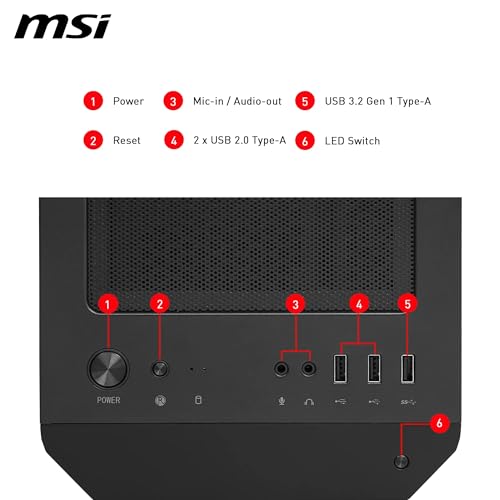

The power button has a satisfying click to it and is large enough to find by feel in the dark. The reset button is smaller and recessed slightly, which is the right call to avoid accidental presses. The audio jack is a combined headset connector, which works fine with modern headsets but requires an adapter if you're using separate headphone and microphone jacks. The USB 3.2 Gen 1 port connects to the motherboard via a standard 19-pin internal header, and the USB 2.0 port uses a standard 9-pin header. Both cables are long enough to reach headers on most mATX boards without straining.

The ARGB fan controller situation is worth mentioning. The three included fans connect to the motherboard's ARGB header (5V 3-pin) for lighting control, and to the fan headers for speed control. MSI includes a small ARGB hub that consolidates the three fan lighting cables into one motherboard connection, which is a thoughtful inclusion. Fan speed control is handled individually via the motherboard headers, or you can daisy-chain them if your board supports it. The lighting effects on the fans are controlled through your motherboard's software, whether that's MSI's own Mystic Light or a third-party ARGB controller.

Edge finishing is acceptable. I ran my hands along the internal edges during the build and found no sharp burrs that drew blood, which isn't always the case at this price point. The motherboard tray cutout edges are rolled, and the drive cage edges are smooth. The one area where I'd be careful is the top panel fan mounting holes, which have slightly sharper edges than the rest of the chassis. Not dangerous, just worth being aware of when you're reaching in to connect fan cables.

The tempered glass panel is a genuine 4mm panel with a slight tint. It's held by two thumbscrews at the rear and hinges slightly at the front edge when you open it, which makes removal easy. The glass itself has no visible distortion and the tint is subtle enough that it doesn't significantly affect the visibility of your components. The ARGB fans look good through it. One thing I noticed: the thumbscrews are a bit loose in their threads, meaning they don't tighten with the same positive stop you get on more expensive cases. They hold the panel fine, but they feel a bit cheap when you're tightening them. Minor, but noticeable.

The Cooler Master Q300L has been around long enough to have a well-understood set of strengths and weaknesses. Its modular panel design is genuinely clever, and it supports ATX PSUs without issue. But its airflow is more restricted than the M100R's mesh front, and it doesn't include any fans in the box. The Fractal Focus 2 Mini is a newer option with better build quality and a more refined cable management system, but it typically sits at a higher price point and doesn't include ARGB fans. For pure value at the budget tier, the M100R's inclusion of three ARGB fans is hard to argue with.

Where the M100R loses ground is in the front I/O department. Both competitors offer USB-C front panel options on their current revisions, which puts the M100R behind on connectivity. The Q300L also has better dust filtration with its magnetic filters on multiple panels. The Focus 2 Mini has more rear chamber depth for cable management. So the M100R wins on included accessories and price, but loses on refinement. That's a fair trade-off at this price tier, but it's worth being clear-eyed about.

But it's not without its compromises. The missing front USB-C is a real frustration in 2026, and it's the kind of omission that will annoy you every time you reach for the front panel with a USB-C device in hand. The lack of a PSU bottom filter is a dust management concern if you're placing this on carpet or a low desk. The rear chamber is tight, and non-modular PSU users will have a harder time keeping things tidy. And the 320mm GPU limit means this isn't the right home for a high-end triple-fan card.

For what it is, though, the M100R delivers solid value. If you're building a Ryzen 5 or Core i5 system with a mid-range GPU and a 240mm AIO, this case handles that configuration well. The thermals are respectable, the ARGB lighting looks good through the glass, and the overall build experience is better than some cases I've used at twice the price. It's not trying to be something it isn't, and at the current price shown below, that honesty is worth something.

For the budget mATX builder who wants a tidy, well-ventilated chassis with lighting included and doesn't need USB-C at the front, the M100R is a genuinely good option. Just go in with clear eyes about its limitations, and it won't let you down. MSI's product page for the MAG FORGE M100R has the full official spec breakdown if you want to cross-reference anything before buying.
