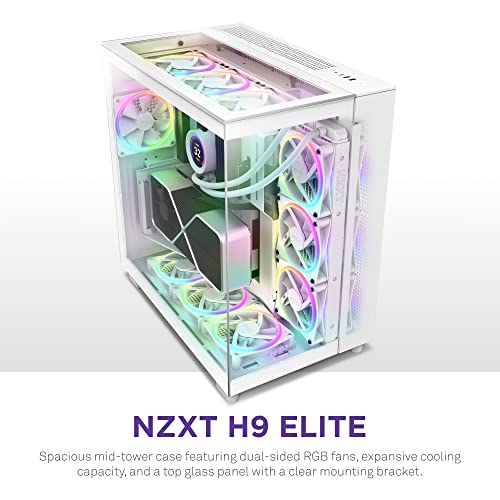

NZXT H9 Elite Review: Dual-Chamber Case Tested

Most case reviews get written after someone unboxes it, takes a few photos, and maybe slots a motherboard in for five minutes. I've been building PCs for twelve years and I can tell you that's not how you find the problems. The H9 Elite sat on my bench for about a month, with a full system running inside it, and that's where the real story comes out. Not from the spec sheet. From the moment you're elbow-deep trying to route a 24-pin around a dual-chamber layout at 11pm wondering if NZXT actually built this thing or just designed it on paper.

So what problems does the H9 Elite actually solve? If you've ever built in a case where the GPU sag was embarrassing, where the cable routing felt like an afterthought, or where the tempered glass side panel rattled every time your fans spun up, you'll understand the frustration. The H9 Elite is NZXT's answer to the question: what if a premium case actually looked as good from the inside as it does from the outside? Three glass panels, a dual-chamber design that hides the PSU and drives behind a wall, and 360mm radiator support are the headline features. But headlines don't tell you whether the screw holes line up properly or whether the included fans are actually worth keeping.

This is my NZXT H9 Elite case review UK 2026, written after a proper month of real-world use. I'll tell you what works, what annoyed me, and whether the premium price tag is justified for what you actually get. No fluff. Just the build experience.

Materials are steel for the chassis, with tempered glass on the front, top, and left side panel. That's three glass panels, which is the "Elite" distinction over the standard H9 Flow. The included fans are three NZXT F120 RGB Duo units, each 120mm, with a controller included in the box. Fan support across the case is generous: three at the top, three at the bottom of the main chamber, and one at the rear. Radiator support goes up to 360mm at the top and 360mm at the bottom, with 120mm at the rear. The case ships without any pre-installed dust filters on the bottom intake, which I'll come back to.

Weight is around 11.7kg empty, which tells you something about the build quality. This isn't a thin-steel budget chassis. The glass panels add to that obviously, but the steel itself feels solid. No flex when you pick it up, no creaking. For the price tier, that's what you'd expect, but it's still worth saying because not every premium-priced case actually delivers on it.

The dual-chamber layout does something interesting to the perceived size. Because the PSU and cables are hidden behind the motherboard tray wall, the main chamber feels genuinely spacious when you're building in it. There's no PSU shroud eating into your lower GPU clearance, no cable bundles flopping around near your intake fans. It's a cleaner working environment than most cases at any price point. The trade-off is that the overall chassis has to be deeper to accommodate both chambers, hence that 484mm figure.

On a desk, the H9 Elite is a statement piece. Three glass panels means you're seeing the internals from the front, the side, and the top. If you're putting this under a desk or in a tight corner, you're wasting the design entirely. This is a case built to be seen. The white finish on this variant is genuinely nice, a matte-ish white on the steel with white glass frames. It doesn't yellow under normal lighting conditions, which was something I kept an eye on over the month. No complaints there.

The CPU cutout on the motherboard tray is large, which is good news for cooler backplate installation. You won't need to remove the motherboard to swap a cooler in most cases, which saves a lot of time during builds and upgrades. The cutout measures generously and accommodates the backplates for most current Intel LGA1851 and AMD AM5 platforms without any fiddling.

One thing I noticed: if you're running an mATX board, the case looks a bit empty in the main chamber. The dual-chamber design and the large glass panels really suit a full ATX board with a proper cooler or AIO. An mATX build in here will work fine mechanically, but aesthetically you're paying for a showcase case and then not filling the showcase. Mini-ITX is the same story, really. This case is designed around ATX builds, and that's where it shines.

GPU sag is a real concern with modern cards, some of which weigh over a kilogram. The H9 Elite doesn't include a GPU support bracket in the box, which is a minor frustration at this price point. You can buy NZXT's own bracket separately, or use a third-party one, but it should really be included. I used a small aftermarket support during my test build and it sorted the problem, but it's an extra cost and an extra thing to think about.

There's no vertical GPU mount option out of the box, and adding one would require a PCIe riser cable and some bracket work. Given the side glass panel, a vertical mount would look spectacular in this case, but NZXT hasn't made it straightforward. The PCIe slot positions on the rear I/O bracket are standard, so third-party vertical mount kits should work, but I didn't test this specifically. If vertical mounting is important to you, factor in the extra cost and effort.

For AIO liquid coolers, the H9 Elite is where things get genuinely interesting. You can mount a 360mm radiator at the top and a 360mm at the bottom simultaneously. That's unusual for a mid-tower and it's one of the case's strongest selling points for enthusiast builds. The bottom radiator sits in the secondary chamber area, which keeps the pump and tubing routing clean. I ran a 360mm AIO at the top during my test build and had zero clearance issues with the RAM. Tall RAM heatspreaders can sometimes foul the bottom fans of a top-mounted radiator, but the H9 Elite's geometry avoids this problem.

The rear 120mm fan position is there for exhaust, and it works as expected. If you're running a 360mm AIO at the top as exhaust and three fans at the bottom as intake, the rear 120mm becomes a bit redundant in terms of airflow contribution, but it doesn't hurt anything. I left it in place during testing. One thing to note: the pump head clearance on the top radiator mount is fine for most AIO designs, but check your specific cooler's tubing routing before committing, because some AIOs with rigid tubing can be awkward near the top-front corner of the case.

For most modern gaming builds, the storage situation is perfectly adequate. If you're running two SSDs and maybe a mechanical drive for bulk storage, you're sorted. Where it gets tighter is if you're building a NAS-adjacent system or a content creation rig that needs four or more mechanical drives. The H9 Elite isn't designed for that use case, and the dual-chamber layout doesn't leave room for additional drive cages. Know what you need before you buy.

M.2 drives are handled by your motherboard, obviously, and the H9 Elite doesn't add any additional M.2 slots of its own. Most current ATX motherboards have two to four M.2 slots anyway, so this isn't a problem in practice. The secondary chamber has enough space to keep SATA cables tidy, and the routing channels between the chambers are positioned sensibly for SATA runs. It's not a storage powerhouse, but for the target audience, it doesn't need to be.

The 24-pin motherboard cable runs through a dedicated channel in the chamber divider wall, and it's positioned well for most ATX boards. The CPU power cable (8-pin or 8+4-pin) has a routing channel near the top of the divider that keeps it out of sight. GPU power cables route through the bottom of the divider, and with a modular PSU you can keep things very clean. I used a Corsair RM850x during my test build and the cable management came out looking genuinely tidy, which isn't something I say often.

Velcro straps are pre-installed at several points in the secondary chamber, and there are additional cable tie anchor points throughout. The PSU itself mounts in the secondary chamber at the bottom rear, with a small vent in the bottom panel for intake. The PSU orientation is fan-down, which is standard. One mild gripe: the PSU mounting area is a bit tight if you're using a longer PSU (750mm+). Most modular PSUs in the 850W-1000W range fit fine, but check your specific unit's length against the available space. NZXT doesn't publish a maximum PSU length figure prominently, which is an oversight.

NZXT's solution is the dual-chamber design, where the bottom of the main chamber acts as the primary intake zone. The three included F120 RGB Duo fans are positioned at the bottom as intake (or you can reconfigure them), pulling air up through the main chamber and exhausting through the top or rear. In practice, temperatures are acceptable for a glass-panel case, but they're not going to match a mesh-front competitor. During my test month, with an RTX 4080 and a Ryzen 7 9800X3D running gaming loads, GPU temperatures were around 75-78°C under sustained load. That's fine, not alarming, but a mesh-front case would likely be 5-8°C cooler under the same conditions.

The included F120 RGB Duo fans are decent. They're not the best fans NZXT makes (that would be the F120 RGB Core or the F series with fluid dynamic bearings), but they're quiet at moderate speeds and the RGB lighting through the dual-ring design looks good through the glass. The fan controller in the box handles up to six fans and connects via USB header to the motherboard, integrating with NZXT's CAM software. If you're already in the NZXT ecosystem, this is convenient. If you're not, it's another piece of software to install. The controller itself is compact and tucks away in the secondary chamber without taking up much space.

The USB 3.2 Gen 2 Type-C port is the headline here. It requires a USB 3.2 Gen 2 Type-C header on your motherboard, which most current mid-range and high-end ATX boards have. If your board only has a USB 3.2 Gen 1 Type-C header, the port will still work but at reduced speeds. Check your motherboard specs before assuming you'll get full Gen 2 performance. The two Type-A ports are solid and positioned well. The I/O area doesn't feel cramped, and the power button has a satisfying click to it, not mushy.

The top placement of the I/O is a preference thing. If your case sits on a desk at eye level or below, top-mounted I/O is easy to reach. If it's on the floor, you're crouching down to plug in headphones, which is less ideal. For most desktop setups, it works well. The cable routing for the front I/O internally is clean, with the USB and audio cables pre-routed through the chamber divider and long enough to reach most motherboard header positions without strain.

The tempered glass panels are thick and well-fitted. The side panel uses a magnetic latch system that holds it securely without rattling, and it swings open on a hinge rather than lifting off entirely. This is genuinely useful during builds because you can swing it open, do your work, and swing it back without having to find somewhere to put a loose panel. The front and top glass panels are also well-fitted with no visible gaps or misalignment. Panel alignment is one of those things that separates a properly engineered case from a cheap one, and the H9 Elite passes that test.

No sharp edges anywhere I found during the build. The motherboard tray cutouts are rolled, the drive bay edges are smooth, and the cable routing channels don't have any burrs. I ran my hands around the inside of the case deliberately looking for problems and found none. That's not guaranteed even at this price point, so it's worth calling out. The screws included in the box are the right quantity and the right types, with a few spares. The thumbscrews for the side panel are knurled properly and don't strip easily. Small details, but they add up to a build experience that doesn't frustrate you.

Against the O11 Dynamic EVO, the H9 Elite wins on build quality finish and the included fans. The O11 comes without fans, which means you're adding cost immediately. The H9 Elite's cable management is arguably cleaner because of how the chamber divider handles routing. The O11 has more flexibility in radiator mounting positions, which some builders prefer. It's close, honestly. Both are excellent cases. The H9 Elite feels slightly more polished out of the box.

Against the Corsair 5000D Airflow, the comparison is more straightforward. The 5000D Airflow will run cooler because of its mesh front. If thermals are your primary concern, the 5000D Airflow wins. But the H9 Elite looks better, has a more interesting internal layout, and the included fans and controller add genuine value. If you're building a showcase system where aesthetics matter as much as performance, the H9 Elite is the stronger choice. If you're building a workstation that runs flat-out for hours and you don't care what it looks like, get the mesh case. For builders on a tighter budget, there are also best pc cases under £215.99 that deliver solid performance without the premium price tag, and if RGB lighting is a priority, RGB computer cases under £215.99 offer excellent value.

But it's not for everyone, and I'd be doing you a disservice if I didn't say that clearly. The all-glass design restricts airflow in a way that mesh-front cases simply don't. If you're running a high-TDP CPU and a flagship GPU and you want the best possible thermals, there are better options. The lack of a GPU support bracket at this price is a minor annoyance. And the depth of the case will catch some people out if they don't measure their desk first. These aren't dealbreakers, but they're real considerations.

For the right builder, though, this is a proper premium case. The build quality is there, the design is distinctive, and the dual-chamber layout makes building in it a genuinely pleasant experience rather than a cable-routing nightmare. If you're putting together a high-end gaming rig and you want it to look the part on your desk, the NZXT H9 Elite case review UK 2026 verdict is straightforward: it's worth the premium price. Check the current price below and see if it fits your budget.

You can find more information about NZXT's full case lineup and the H9 Elite's official specifications on the NZXT product page. For understanding the USB Type-C standard that powers the front I/O, the USB Implementers Forum has the full specification detail.
