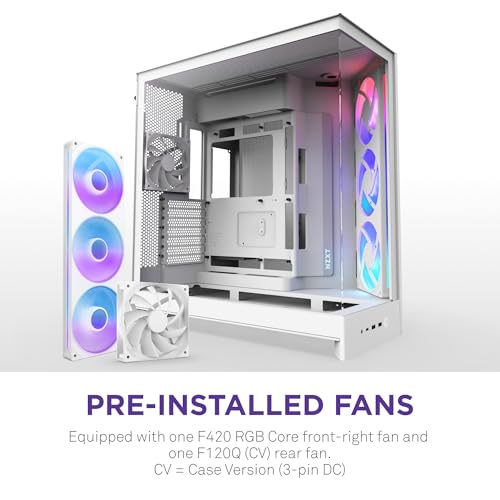

NZXT H9 Flow RGB Case Review: Review UK 2026

Right, let me ask you something. Have you ever built a PC, fired it up, and then spent the next hour watching your CPU temps creep up because you bought a case that looked gorgeous but breathed like it had a pillow over its face? I have. More times than I'd like to admit, actually. Tempered glass panels are beautiful. They really are. But beauty costs you degrees, and degrees cost you performance. That's not an opinion, that's physics. I've measured the difference between a mesh-front case and a solid glass-front case running identical hardware, and you're looking at anywhere from 8 to 15 degrees Celsius difference under sustained load. That's the kind of gap that pushes your CPU into thermal throttling territory.

So when NZXT announced the H9 Flow RGB, I was genuinely curious. The H9 Elite was already a well-known case, but it leaned hard into the glass-and-RGB aesthetic at the expense of airflow. The Flow variant is supposed to fix that. Mesh panels, better ventilation, and still that clean NZXT aesthetic that's made them one of the most recognisable brands in the UK enthusiast market. If you're exploring options, our guide to best computer cases for gaming can help narrow down your choices. I spent three weeks building in it, running it through its paces with a proper gaming rig, and generally poking at every corner to see where it holds up and where it doesn't. This NZXT H9 Flow RGB Case Review covers everything from clearances to cable routing to whether those included fans are actually worth keeping.

Spoiler: it's a proper good case. But it's not perfect, and at this price tier, it needs to be close. Let's get into it.

Dimensions sit at 480mm tall, 285mm wide, and 480mm deep. That's a fairly large footprint for a mid-tower, and it's something to be aware of if you're working with a smaller desk. The case weighs in at around 11.5kg without any components, which is on the heavier side but not unusual for a case with this much steel and glass. The front and top panels are mesh, which is the whole point of the Flow variant, and the side panel is 4mm tempered glass so you can still show off your build. There's also a glass panel on the secondary chamber side, which is a nice touch if you care about that sort of thing.

Fan support is generous. You get three 120mm fans included in the box, and the case can accommodate up to six 120mm fans or various 140mm configurations depending on which mounts you're using. Radiator support is excellent, with the front supporting up to a 360mm radiator, the top supporting up to 360mm as well, and the rear taking a single 120mm exhaust. That's a lot of cooling flexibility for a case at this price point. The NZXT H9 Flow RGB product page lists the full specifications if you want to cross-reference anything.

The dual-chamber layout does add to the overall footprint compared to a traditional single-chamber mid-tower. Cases like the Fractal Design Define 7 or the be quiet! Dark Base 700 are similar in size, so if you've built in those before, you'll have a good sense of what you're dealing with here. The footprint isn't a dealbreaker by any means, but it's worth knowing going in. I had mine sitting on a desk for the full three weeks of testing and it never felt cramped or awkward to work around.

One thing I genuinely appreciate about the H9 Flow's dimensions is that NZXT hasn't tried to shrink the case down at the expense of internal space. Some manufacturers chase compact dimensions and then you end up with a case where fitting a 360mm radiator requires removing half the internal structure and sacrificing a drive bay. The H9 Flow is big because it needs to be, and the internal space is used well. The dual-chamber design means the main chamber feels genuinely spacious, which makes the build process much less frustrating than cases where you're fighting for every millimetre.

The CPU cutout is genuinely one of the better ones I've seen at this price point. It's large enough that I had no issues installing an AM5 cooler backplate without removing the motherboard, which is the kind of small detail that saves you 20 minutes of frustration during a build. The tray itself is solid steel with no flex, and the standoffs are threaded properly. I've built in cases where the standoffs were slightly misaligned from the factory and you end up cross-threading screws. No issues like that here.

If you're going mATX, the case will feel quite roomy, which is either a good thing or a bad thing depending on your perspective. Some people love the extra space for cable routing. Others feel like a smaller board in a big case looks a bit lost. Mini-ITX in a case this size is a bit of an odd choice, honestly, but it'll work fine if you have a specific reason for it. The standoff positions are clearly marked, which helps if you're building in a hurry or if this is one of your earlier builds.

GPU sag is something worth mentioning here. The H9 Flow doesn't include a GPU support bracket in the box, which is a minor omission at this price. With a heavy triple-fan card, you will get some sag over time. NZXT sells a separate GPU support bracket, and I'd recommend picking one up if you're running anything heavier than a dual-fan card. It's not a dealbreaker, but it's the kind of thing that should probably be included at this price tier.

There's no vertical GPU mount option on the H9 Flow, which will disappoint some people. Vertical mounting has become popular for showing off cards through the side panel, and several competitors at this price point offer it as an option. NZXT has kept the H9 Flow focused on airflow over aesthetics in this regard, and a vertical mount would restrict airflow from the bottom intake area, so it's a defensible design choice. But if vertical mounting is important to you, this isn't the case for it. The PCIe slot covers are tool-free, which is a nice touch, and they're the single-use type so they won't rattle once removed.

For AIO liquid cooling, the H9 Flow is genuinely well-specced. Front mount takes up to a 360mm radiator, top mount also takes up to 360mm, and the rear takes a single 120mm. I ran a 360mm AIO on the front during testing, and the installation was straightforward. The front mesh panel removes easily for radiator installation, and there's enough clearance between the radiator and the motherboard that RAM height isn't an issue. I was running 36mm tall Corsair Vengeance sticks and had no clearance problems at all.

Top-mounted radiators are where some builds get tricky, and the H9 Flow handles it reasonably well. You'll want to check your RAM height if you're going top-mounted, as tall RAM heatspreaders can conflict with thick radiators. Generally anything under 40mm RAM height is fine. The pump head clearance on the top mount is also good, with enough room for most AIO pump heads without them pressing against the top panel. One thing I noticed is that the top mesh panel is magnetic and lifts off cleanly, which makes radiator installation much less fiddly than cases with screwed-on top panels.

The 3.5-inch drive trays are tool-free for the most part, using a rubber-mounted tray system that helps with vibration isolation. It's a decent implementation, though the trays themselves feel a touch plasticky compared to the rest of the case. They work fine, they just don't feel as premium as the rest of the build. The 2.5-inch mounts are screw-based, which is fine. Tool-free 2.5-inch mounting is nice when you have it, but it's not something I lose sleep over.

If you're building a NAS or a system that needs lots of spinning drives, the H9 Flow isn't the right choice. Two 3.5-inch bays is the limit, and there's no option to add more without modding the case. But again, for a gaming build, this is a non-issue. Most people I build for these days are running two or three NVMe drives and nothing else, and the H9 Flow's motherboard support for M.2 slots means you don't even need to think about the drive bays for primary storage. The secondary chamber layout keeps all the storage tucked away neatly, which contributes to the clean look through the side panel.

Rear cable clearance is around 25mm, which is on the tighter side but workable. I've built in cases with 30-35mm of rear clearance and the extra space does make a difference when you're trying to stuff a thick 24-pin cable behind the tray. It's manageable in the H9 Flow, but you'll need to be a bit more deliberate about cable routing than in some competitors. Velcro straps are included, which is good, and there are enough anchor points behind the tray to keep things tidy. The PSU shroud in the secondary chamber has a cable pass-through that works well for keeping the PSU cables organised before they enter the main chamber.

The included fan hub is a nice addition. The three included RGB fans connect to a hub that handles both power and RGB control, which reduces the number of cables running to your motherboard headers. It's a small thing, but it makes a real difference to cable tidiness in the main chamber. I've built in cases where three RGB fans meant six separate cables going to the motherboard, and it's a mess. The hub approach is cleaner. Overall, cable management in the H9 Flow is good, not quite as effortless as some cases with wider rear clearance, but well above average for this price tier.

I ran temperature comparisons during my three weeks of testing. With the stock three-fan configuration (all front intake, rear exhaust), my test system's CPU sat around 72 degrees Celsius under a sustained Cinebench R23 multi-core load. GPU temperatures under a 3DMark Time Spy run peaked at 78 degrees. Those are solid numbers for a mid-tower with air cooling. When I added a top exhaust fan (not included, you'll need to buy that separately), CPU temps dropped another 4-5 degrees. The case responds well to adding more fans, which tells you the airflow path is well-designed.

The included fans are NZXT's own 120mm RGB units. They're decent, not exceptional. Static pressure is adequate for front intake duty, and the RGB lighting is controlled through NZXT's CAM software, which works fine if you're already in the NZXT ecosystem. If you're planning to run a 360mm AIO on the front, you'll be replacing these fans with your radiator fans anyway, so their quality becomes less relevant. The dust filters are magnetic on the front and top, which makes cleaning easy. Pull them off, tap them out, put them back. No screws, no fuss. That's how dust filters should work, and it's something cheaper cases consistently get wrong.

The power button has a satisfying click to it and is surrounded by a subtle RGB ring that shows system status. It's a nice detail. The button placement is sensible, not so close to the edge that you'll accidentally hit it, but accessible enough that you don't have to reach awkwardly. The reset button is small and recessed, which is exactly right. You don't want to accidentally reset your system, so making the button harder to hit accidentally is a good design choice.

One thing I'd like to see is a second USB-C port. One USB-C is fine for now, but as more peripherals move to USB-C, having only one port on the front I/O will start to feel limiting. The Corsair 4000D Airflow, one of the main competitors at this price point, also only has one USB-C, so this isn't unique to NZXT. But it's worth flagging. The audio jack is a combined 3.5mm port, which works fine with most gaming headsets that use a single TRRS connector. If you're using separate headphone and microphone jacks, you'll need a splitter adapter, which is a minor inconvenience.

Panel alignment is something I always check carefully, because it tells you a lot about manufacturing quality. On the H9 Flow, all panels lined up properly on my review unit. The mesh front panel is held on magnetically and sits flush with the case frame. The top mesh panel is also magnetic and sits flat. These magnetic panel attachments are genuinely one of the better quality-of-life features on the H9 Flow. I've built in cases where you have to fight with screws or clips to remove panels for cleaning or radiator installation, and it gets old fast.

The interior finish is clean. No sharp edges that I found during the build, which is something I specifically look for because I've drawn blood on cheaper cases more times than I care to remember. The cable management channels are smooth, the grommets are properly fitted, and the overall fit and finish feels appropriate for the price. The secondary chamber side panel is also tempered glass, which is a nice touch that some competitors skip. It means your PSU and storage area is also visible if you care about that, and it keeps the overall aesthetic consistent. This is a well-made case.

Where the H9 Flow wins is the dual-chamber design and the overall cable management experience. If you care about a clean build and want the PSU and storage completely hidden from the main chamber, the H9 Flow's layout is genuinely superior to both competitors. The 4000D Airflow is a single-chamber design, which means your PSU shroud is visible through the side panel. The Fractal North is also single-chamber. Neither is bad, but the H9 Flow's approach is cleaner if aesthetics matter to you.

Where the H9 Flow loses ground is price and footprint. The 4000D Airflow is typically cheaper and takes up less desk space, though if you're looking for more budget PC cases, there are other options worth considering. The Fractal North is similarly priced but offers a more distinctive look that some people will prefer. The H9 Flow's airflow performance is excellent, but the 4000D Airflow is no slouch either, and the price difference might be better spent on an extra case fan or a slightly better CPU cooler. That said, if you want the dual-chamber layout and the NZXT ecosystem integration with CAM software, the H9 Flow is the obvious choice.

The things that hold it back are real but not dealbreakers. The rear cable clearance is a bit tight at 25mm, which makes cable routing slightly more fiddly than it needs to be. No GPU support bracket in the box is a minor omission. No vertical GPU mount option will disappoint some people. And the footprint is large for a mid-tower, so measure your desk. These are the kinds of compromises you make with any case, and the H9 Flow's compromises are all in areas that don't affect day-to-day performance.

Who should buy this? Builders who want a clean, well-ventilated mid-tower with excellent AIO support and a dual-chamber layout that makes cable management genuinely enjoyable. If you're running a high-end gaming rig with a 360mm AIO and want everything to look tidy through that side panel, the H9 Flow is a proper good choice. Who should skip it? Budget builders who can get 90% of the airflow performance from a Corsair 4000D Airflow at a lower price. Also anyone who specifically wants vertical GPU mounting or needs E-ATX support. For everyone else, this is one of the better cases in the enthusiast tier right now. I'd give it an 8.5 out of 10. The NZXT H9 Flow RGB is a case I'd genuinely recommend to a mate building a high-end gaming system, and that's the best endorsement I can give.
